起订:1台
供应:20台
发货:2天内
商品描述
跨境

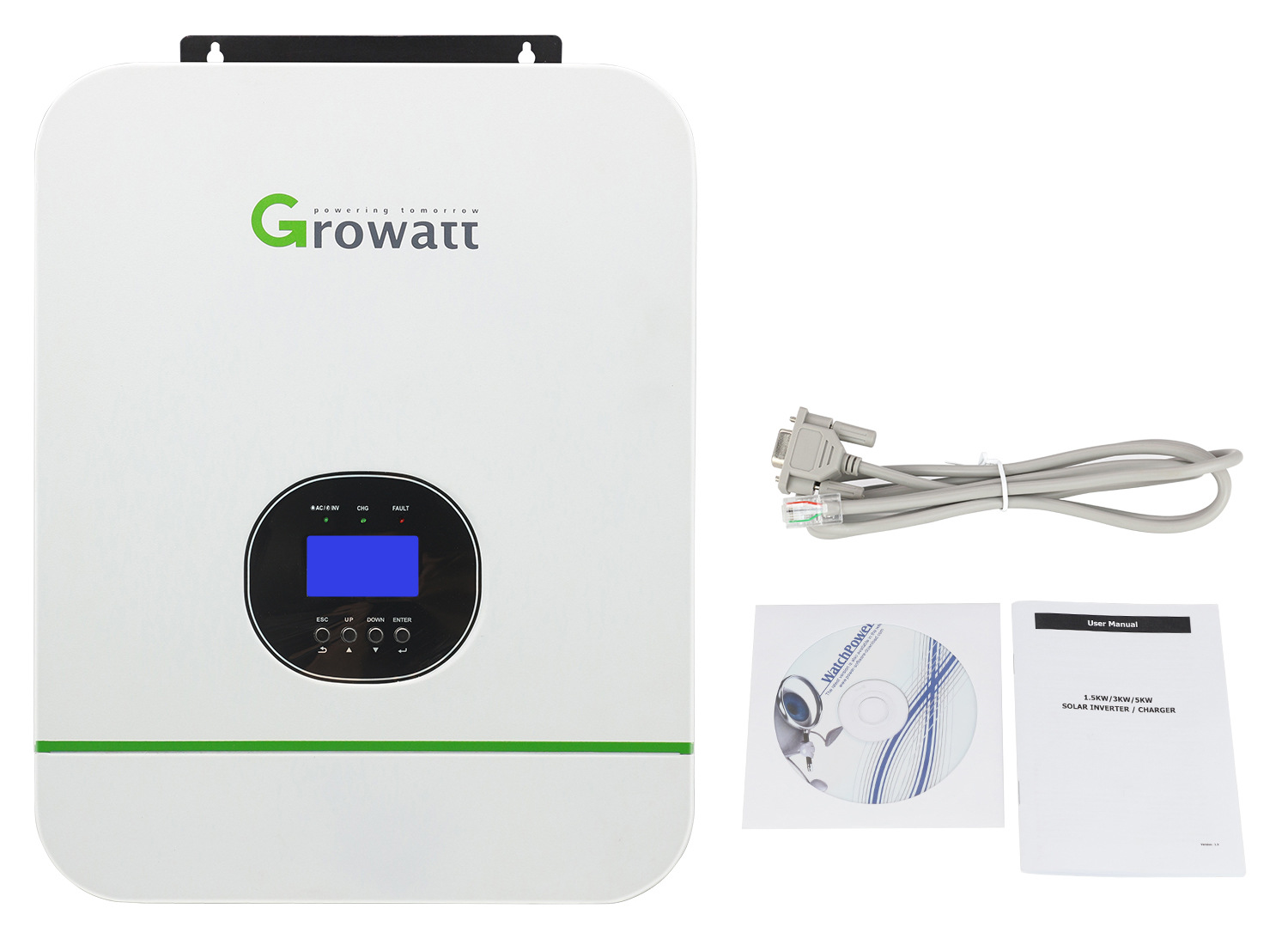

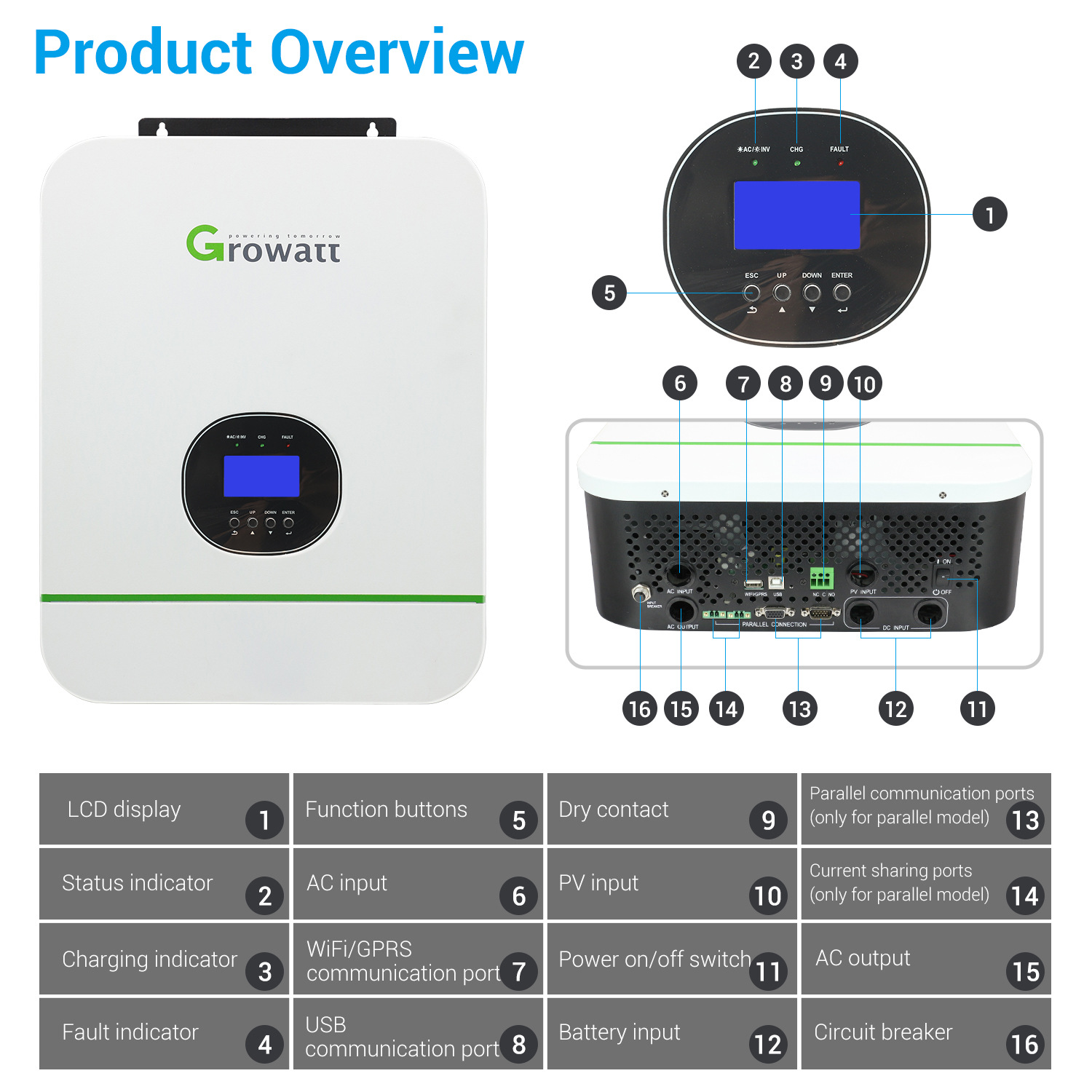

Overview:

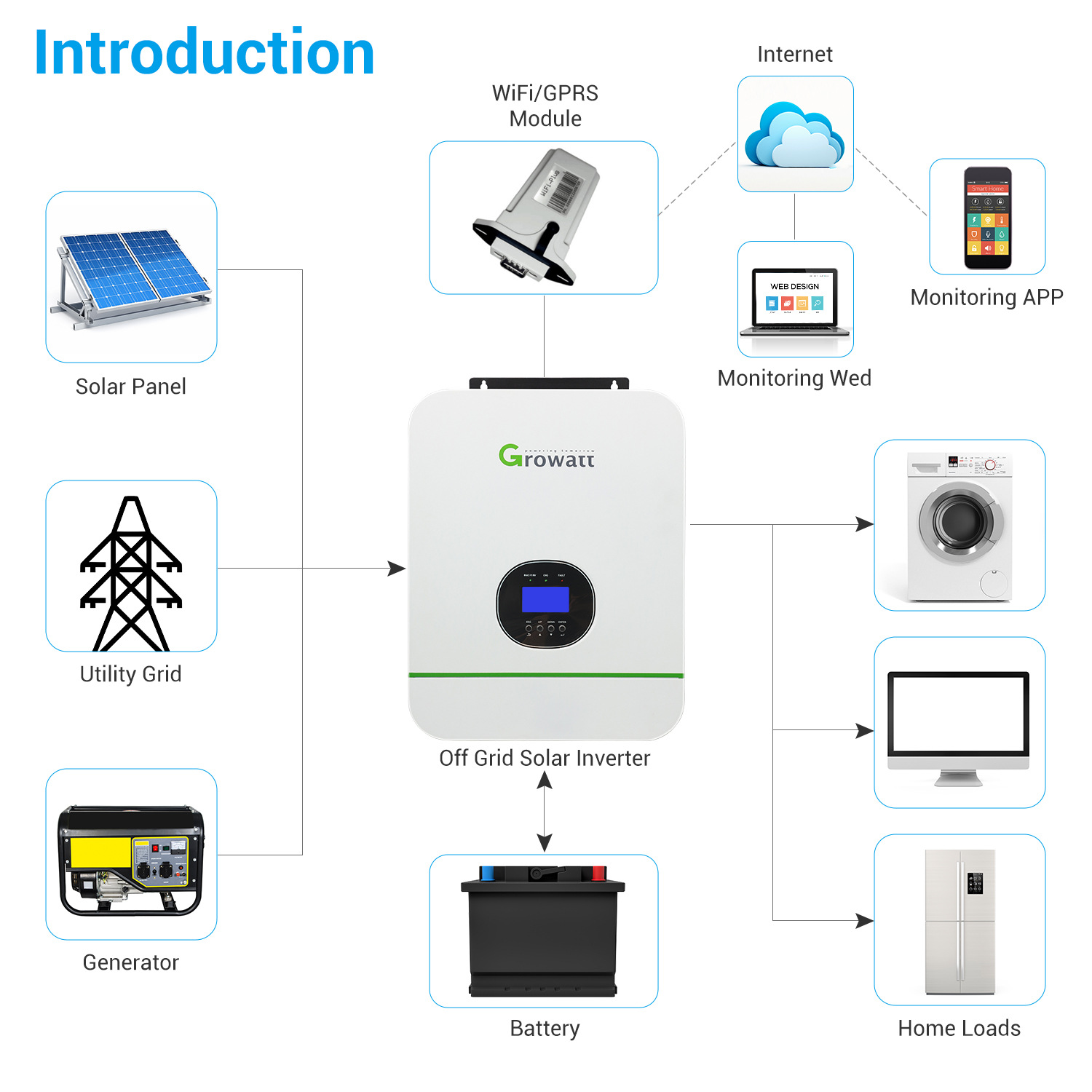

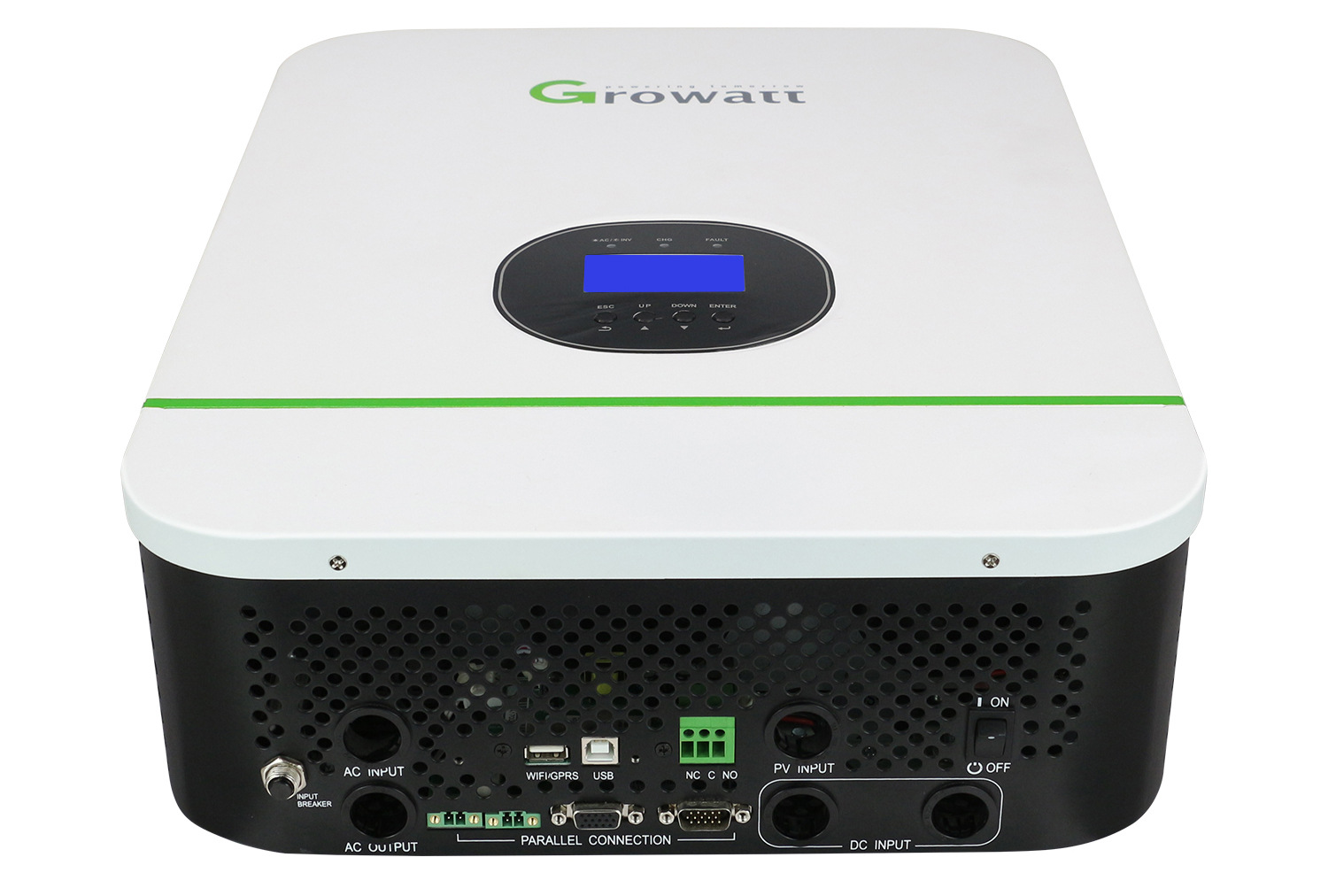

This single-phase off-grid SPF series is suitable for small off-grid systems. It is an inverse control integrated machine with built-in MPPT controller. It can support the access of mains and diesel generators. It has a beautiful appearance, compact structure, and supports multiple monitoring methods.
Feature：
Integrated MPPT controller
The priority of mains and photovoltaic power supply can be set
Compatible with lead-acid and lithium batteries
Optional WIFI or GPRS remote communication module
Maximum support 6 single-phase or three-phase parallel

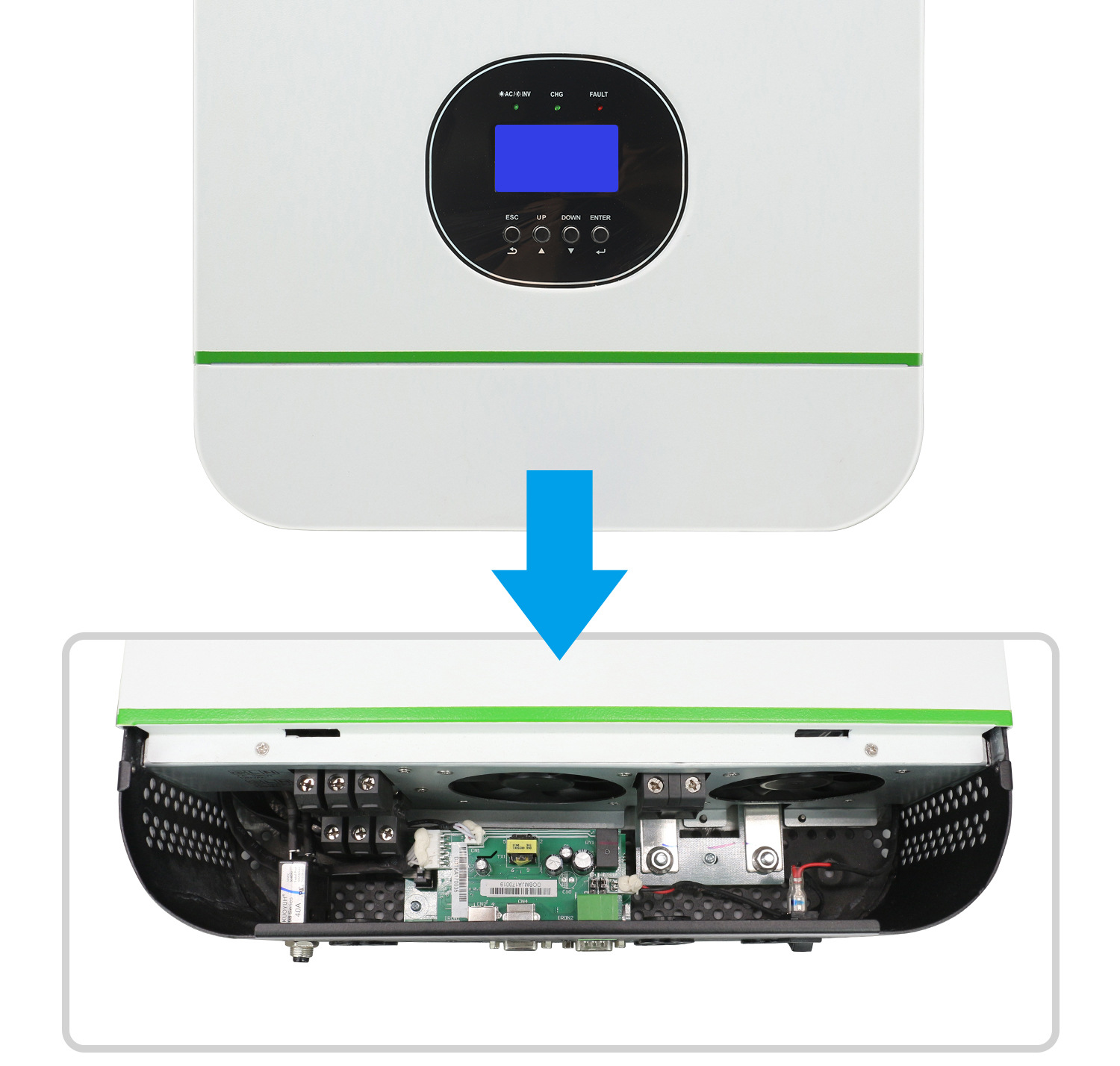

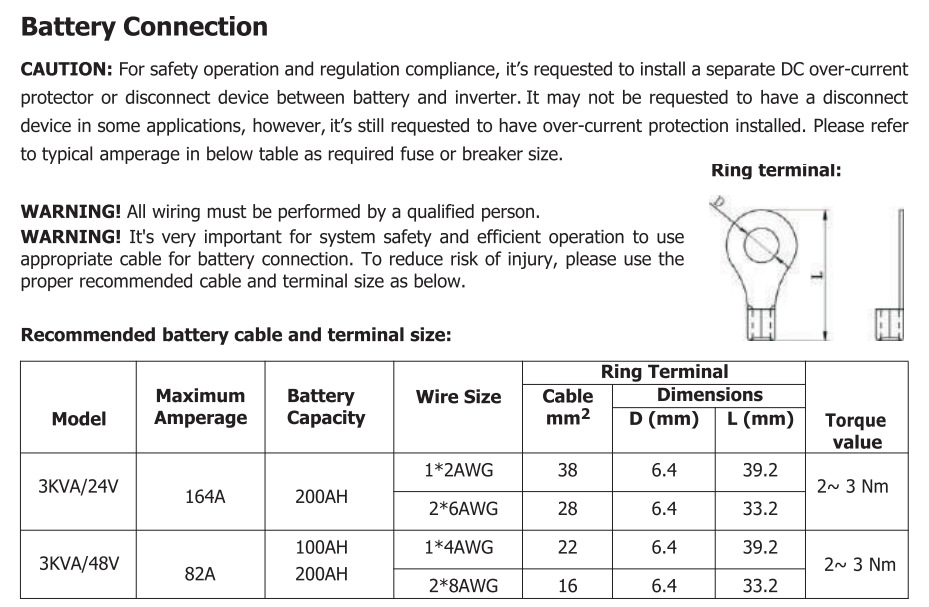

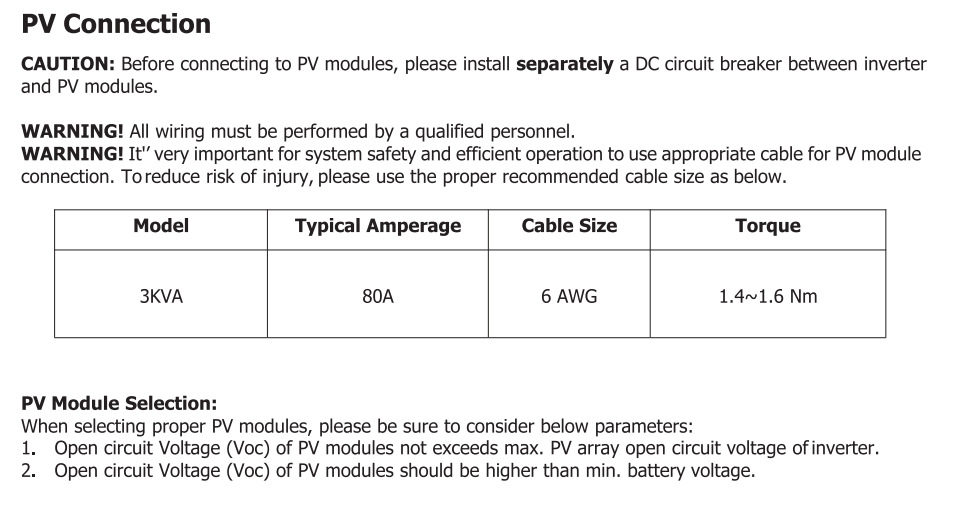

PV and Battery connect instruction
Specification：
Datasheet | SPF 3000TL LVM-24P | SPF 3000TL LVM-48P |
| Battery voltage | 24VDC | 48VDC |
| INVERTER OUTPUT | ||
| RATED POWER | 3000VA/ 3000W | 3000VA/ 3000W |
| Parallel Capability | Yes | Yes |
| AC Voltage Regulation (Battery Mode) | 120VAC ± 5% @ 50/60Hz | 120VAC ± 5% @ 50/60Hz |
| Surge Power | 6000VA | 6000VA |
| Efficiency (Peak) | 93% | 93% |
| Waveform | Pure sine wave | Pure sine wave |
| Transfer Time | 10 ms (For Personal Computers); 20 ms (For Home Appliances) | 10 ms (For Personal Computers); 20 ms (For Home Appliances) |
| SOLAR CHARGER | ||
| Maximum PV Array Power | 2000W | 4500W |
| MPPT Range @ Operating Voltage | 30VDC ~ 115VDC | 30VDC ~ 115VDC |
| Maximum PV Array Open Circuit Voltage | 145VDC | 145VDC |
| Maximum Solar Charge Current | 80A | 80A |
| Maximum Efficiency | 98% | 98% |
| Standby Power Consumption | 2 W | 2 W
|
